TIG Torch Series Features
Torch bodies are made from temperature resistant silicon rubber for lightweight, durability
Knuckle joints make it easier to position the torch and hold the cable cover securely in position
Leather cover termination improves flexibility for approximately 3 ft. immediately behind the handle
Rubber cable covers provide durable protection that resists snagging, doesn’t melt like nylon and cleans up easily
Surelok power termination (dinse style), remote plug and gas connections are configured for specific welding machines
All consumables are fully compatible and interchangeable with OEM parts
Ergonomic handles are designed to improve your grip and feature plug and play remote control options that can be changed in seconds without any tools
25 ft. standard cable length extends your reach further from the machine.

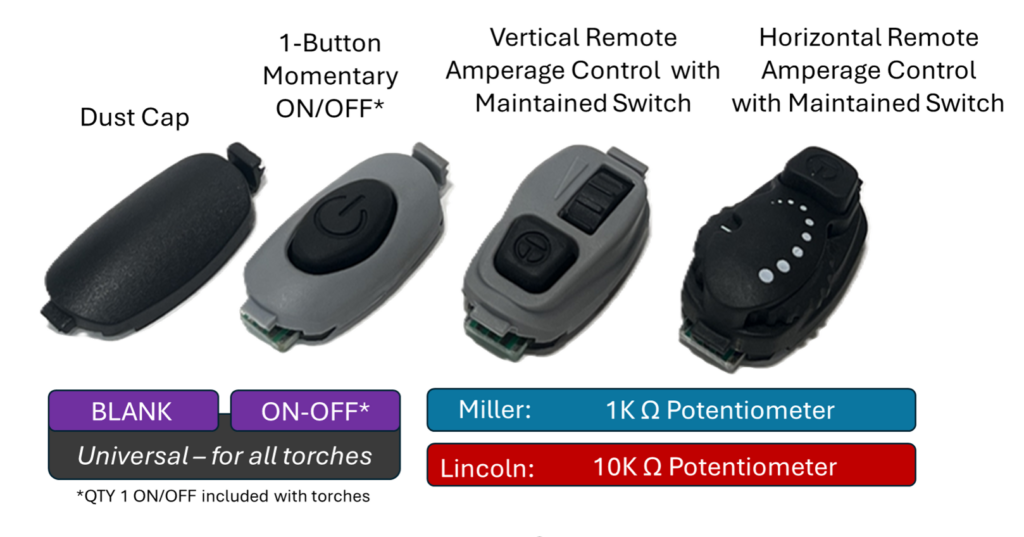

Remote Control Switch Options
Dust Cap

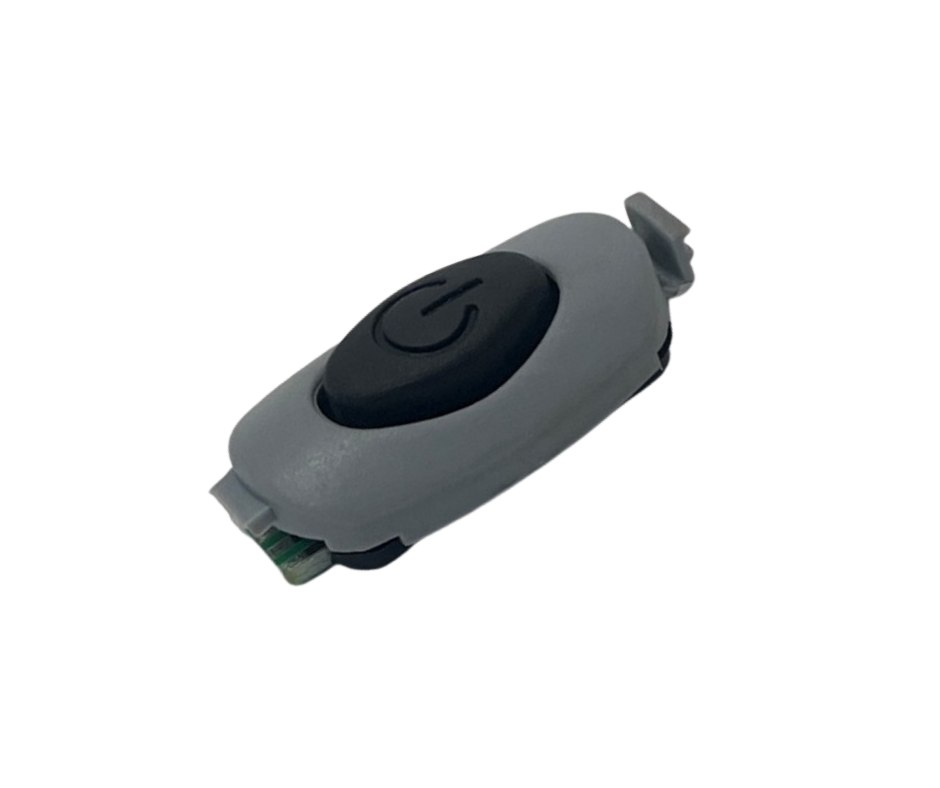

1-Button
Momentary
ON/OFF*
Vertical Remote
Amperage Control with Maintained Switch
Horizontal Remote
Amperage Control with Maintained Switch
BLANK | ON/OFF*
Miller: 1 K Ω Potentiometer
BLANK | ON/OFF*
Miller: 1 K Ω Potentiometer
Universal
Lincoln: 10 K Ω Potentiometer
Universal – for all torches
Lincoln: 10 K Ω Potentiometer
SELECT MODELS AVAILABLE NOW!
Air-Cooled

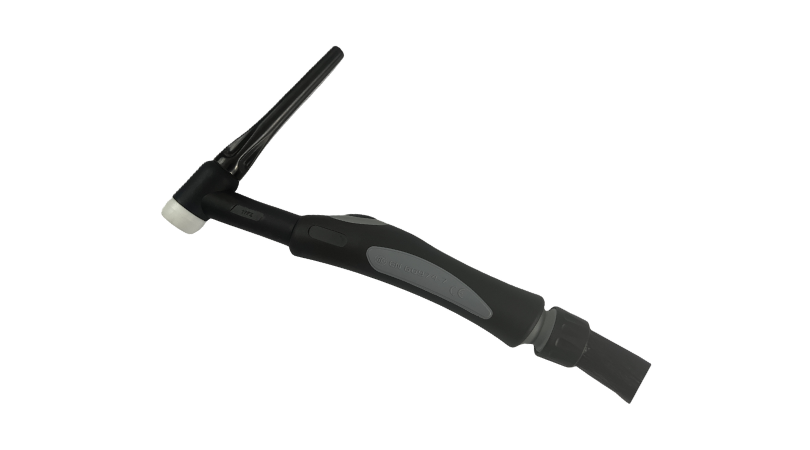

Model: FuzionGrip 150A (#17 Style)
Type: Air-cooled
Rating – DCEN: 150A
AC: 105A
Duty Cycle: 35%
Electrode size: 0.040”-1/8” (1.0-3.2mm)
Available Configurations:
- Miller 14-pin w/ 50mm dinse w/ auxiliary gas hose (5/8” RHT)
- Lincoln 6-pin w/ 50 mm flow through dinse

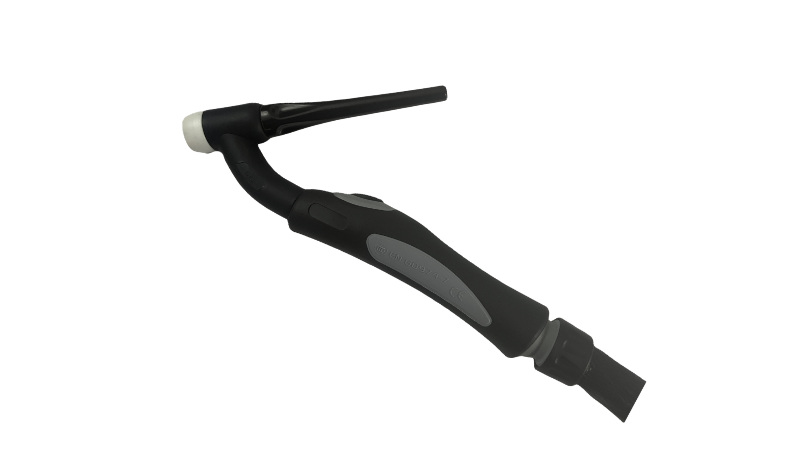

Model: FuzionGrip 150AFX (#17 Style Flex Head)
Type: Air-cooled
Rating – DCEN: 150A
AC: 105A
Duty Cycle: 35%
Electrode size: 0.040”-1/8” (1.0-3.2mm)
Available Configurations:
- Miller 14-pin w/ 50mm dinse w/ auxiliary gas hose (5/8” RHT)
- Lincoln 6-pin w/ 50 mm flow through dinse
AIR-COOLED
Long back cap included
Momentary ON/OFF included with torch
Choose your machine connections
Liquid-Cooled

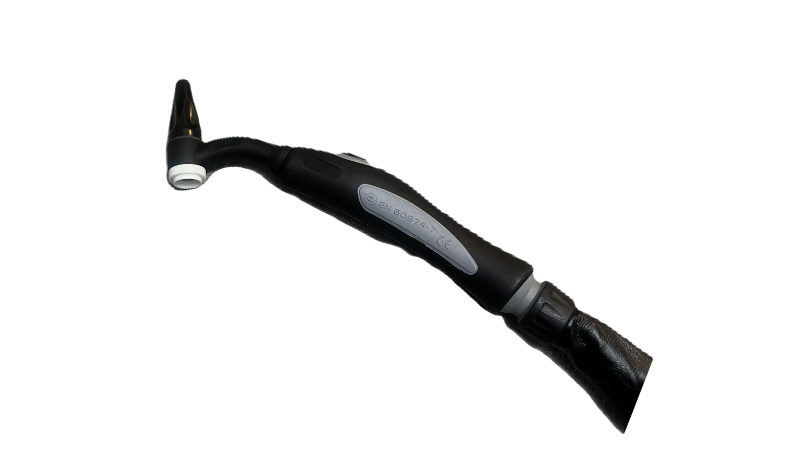

Model: FuzionGrip 225WFX (#20 Style Flex Head)
Type: Liquid-cooled
Rating – DCEN: 225A
AC: 160A
Duty Cycle: 100%
Electrode size: 0.040”-1/8” (1.0-3.2mm)
Available Configurations:
- Miller 14-pin w/ 50mm dinse w/ auxiliary gas hose
- Lincoln 6-pin w/ 50 mm flow through dinse
LIQUID-COOLED
Medium back cap included
Momentary ON/OFF included with torch
Choose your machine connections
